Fluke philips precision PM5715Â pulse generator

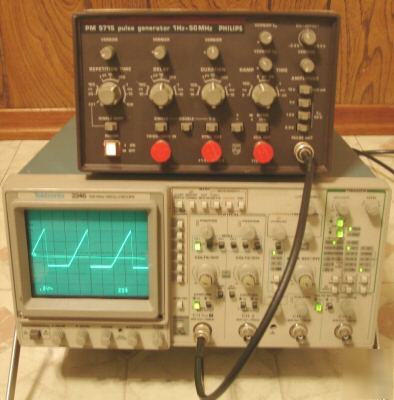

FLUKE PHILIPS PRECISION PM5715
The PM 5715 offers continuously variable transition times from 6 ns to 500 ms, with separately adjustable rise and falltime. This model also allows selection of both positive and negative pulses, over the full amplitude range from -10V to +10V. With this wide-ranging adjustability, the PM 5715 is the optimum choice in general purpose applications such as those found in research an development, where a wide variety of different pulse response tests may need to be made.
PM 5715 provides two pulse outputs: the main output, with signal levels of up to 10V, allows the generator to operate with both low- and high-level logic, while the auxiliary output provides pulses similar to those from the main output, but at fixed TTL levels. Further, double pulses can be generated with variable delays, allowing these instruments to be used for analysis of pulse pair resolution in analog and digital circuits.
• 1 Hz ... 50 MHz frequency range
• Rise/Fall times: 6 ns…500ms,variable
• Amplitude range: 0.2V to 10V into 50
• External triggering, gating and pulse shaping facilities
• Single/double, normal/inverted and positive/negative pulse modes
Here is a link to the datasheet brochure!
Nice shape, coming from a working environment!
