Tektronix 7904A + 54 plug-ins 63(+) volume manual set

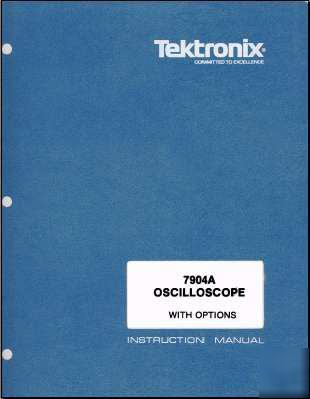

Tektronix 7904A Service/Op Manual Plus Sixty One 7000-Series Plugin Manuals in PDF in a 2-CD Set
->Very Hi Res Samples<-(7904A)
->Standard Res Samples<-(7904A & Plugins)
For page samples from the specific Reproduction Grade manual (7904A) included, click HERE.
(No need to "email for samples," so no need to worry about getting sold to a SPAM list!)
(Please read FAQ or "About Me" Page)
These PDF manuals cover the Tektronix Model 7904A oscilloscope frame plus a substantial number of plugins (see list below). They are all scanned from the original Tektronix commercial manuals. The scans came out well, and all information available in the original manuals is available here.
Two PDFs of the Oscilloscope Mainframe manual are provided, in two resolutions. One is:
Text with Drawings at 600dpi black and white
Schematics at 600dpi black and white
Text with photos at 600dpi grayscale with contrast adjusted
Any Schematics, board overlays with color notes at 600dpi 256 colors
Of course, it's fully bookmarked, extensively hyperlinked, and uses both the Chapter-page and the sequential numbering systems.
Here's a listing of the plugin manuals included. These are all done in the fast "bench" resolution. This is not a choice of manuals, you get them ALL!
Service, Operating, Programming
Service, Operating, Programming
62 Manuals covering 54 Plugins (54 Service, 6 Operating, 2 "Special Purpose")
As a "bonus", includes the Tektronix publication "Tektronix 7000 Series Digital Plug-in Applications" (time and frequency, digital delay, amplitude, temperature) at no additional charge. Please note that this is not included in the "volume count".
